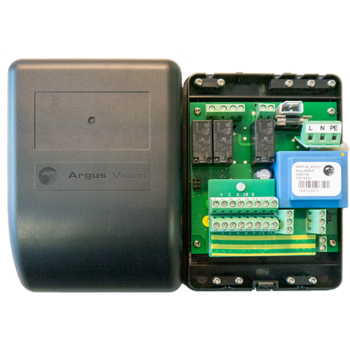

Interface module for Mark air heaters

An Interface+ module can be used in two ways.

1. Power control

An externally supplied 0-10VDC signal is converted into a power control of the burner. With an Interface+ module, one G(S)+ can be controlled.
Potential free entry: Reset
Potential free exits: Malfunction
Operation

2. Connection BMS (building management system)

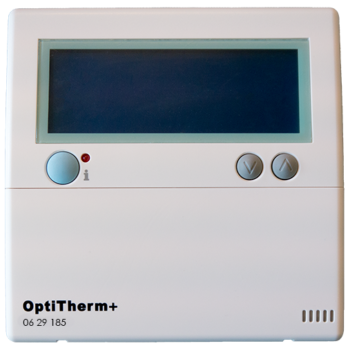

Settings, actual temperatures and fault codes can be read using Modbus. Settings of the OptiTherm+ can be modified.

Specifications

Wiring: Shielded data cable (between Interface+ and air heater)
Dimensions: 109x154x49 mm (lxwxh)
Weight: 498 grams
Degree of protection: IP20
Ambient temperature: 0-40°C

Article code

3002866
